What Is Acrovyn Wall Protection?

Acrovyn wall protection consists of rigid, high-impact-resistant panels manufactured from proprietary thermoplastic materials. These panels come in various thicknesses (typically ranging from 1/8 inch to 1/4 inch) and are designed to absorb and distribute impact force across a wider surface area. The material maintains structural integrity even after repeated strikes, making it ideal for environments where aggressive behavior, accidental damage, or deliberate destruction might occur.

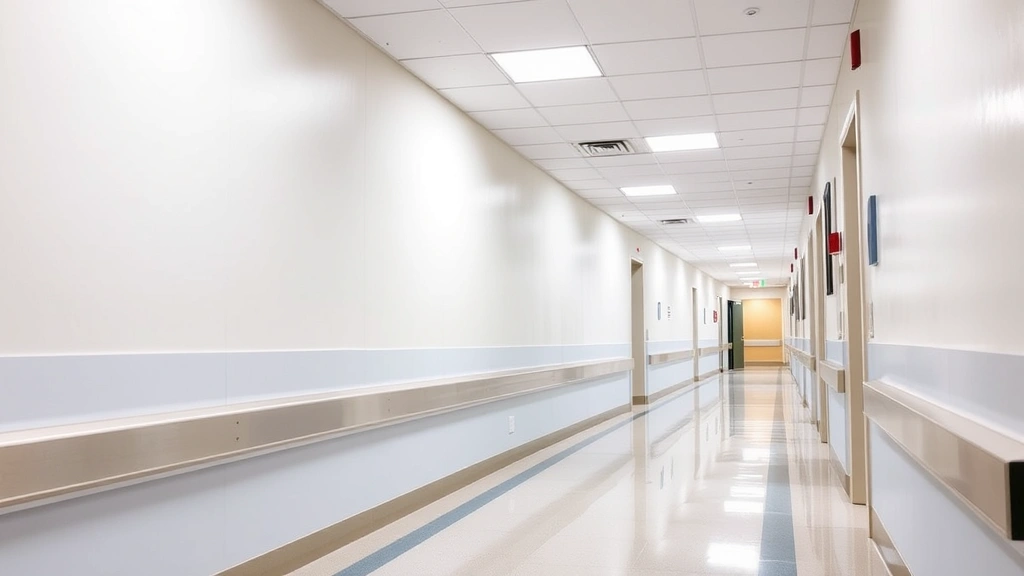

The product is commonly installed in psychiatric facilities, emergency departments, correctional institutions, and educational settings where protection against intentional or unintentional damage is necessary. Acrovyn panels are adhered to walls using industrial-strength adhesives and can be combined with metal reinforcement at vulnerable points. The material’s smooth, seamless surface also facilitates easier cleaning and decontamination—critical features in healthcare environments.

Installation height typically ranges from 4 to 8 feet, depending on facility requirements and threat assessment. Many installations cover only the lower portion of walls, where impacts are most likely to occur. This partial coverage approach balances cost considerations with protection needs.

Security Features and Capabilities

Acrovyn wall protection offers several genuine security advantages when properly installed:

• Impact Resistance: The material withstands blunt force trauma significantly better than drywall or standard wall coverings. Testing by NIST and independent laboratories confirms that Acrovyn maintains structural integrity under forces that would destroy conventional walls.
• Prevents Penetration: Unlike drywall, Acrovyn doesn’t easily break apart, preventing individuals from creating holes or openings that could be used as weapons or escape routes.
• Reduces Improvised Weapons: The material doesn’t splinter or break into sharp fragments, eliminating a common source of improvised weapons in high-risk facilities.
• Psychological Deterrent: The visible presence of protective wall coverings signals that an environment is secure and monitored, potentially discouraging aggressive behavior.
• Damage Mitigation: By protecting underlying walls and infrastructure, Acrovyn reduces facility damage costs and maintains operational continuity.

For facilities managing individuals with behavioral health challenges, these features provide meaningful protection. Psychiatric hospitals, in particular, have reported reduced incidents of environmental damage and staff injuries in areas equipped with Acrovyn protection.

Real-World Performance Testing

Independent security assessments and CISA guidance on facility hardening have examined Acrovyn’s real-world performance. Testing protocols typically involve:

1. Impact testing with standardized force measurements (measured in foot-pounds)
2. Repeated strike testing to assess material degradation
3. Environmental stress testing (temperature, humidity, UV exposure)
4. Chemical resistance assessment for cleaning and disinfection products
5. Installation quality evaluation under various conditions

Results consistently show that properly installed Acrovyn withstands impacts 5-10 times greater than standard drywall. However, performance depends heavily on installation quality. Panels that aren’t properly adhered or lack adequate edge reinforcement may fail prematurely. Professional installation by certified contractors is essential for security effectiveness.

Third-party testing by security consultants has documented that while Acrovyn prevents casual damage, determined individuals with tools or sustained effort might eventually breach the material. This reality underscores that wall protection is a layered security component, not a standalone solution.

Vulnerabilities and Limitations

Security professionals identify several critical limitations of Acrovyn wall protection:

Not Bulletproof: Acrovyn provides no ballistic protection. Standard panels will not stop bullets or high-velocity projectiles. This distinction is crucial for facilities facing armed threat scenarios. Organizations requiring ballistic protection need specialized materials and architectural modifications beyond standard Acrovyn installation.

Edge Vulnerability: Panel edges and seams represent weak points. Determined attackers can exploit gaps between panels or at installation termination points. Proper detailing with metal reinforcement at edges is essential but adds cost and complexity.

Tool Penetration: While resistant to blunt force, Acrovyn can be cut, drilled, or breached with appropriate tools. Correctional facilities have documented instances where inmates used improvised tools to damage protective coverings. The time required increases security slightly, but determined individuals can eventually penetrate the material.

Environmental Degradation: Acrovyn’s performance degrades over time, particularly in harsh environments. Exposure to extreme temperatures, aggressive cleaning chemicals, or direct sunlight can weaken the material. Facilities must maintain rigorous replacement schedules—typically 10-15 years depending on conditions.

Installation Dependency: Security effectiveness depends almost entirely on installation quality. Poor adhesion, inadequate edge reinforcement, or missing panels compromise the entire system’s effectiveness. Many security failures result from installation shortcuts rather than material defects.

Limited Scope: Wall protection only addresses one threat vector. Determined attackers can target doors, windows, fixtures, or staff directly. Acrovyn creates a false sense of security if not integrated with comprehensive security planning.

Comparison with Alternative Solutions

Security professionals consider several alternatives when evaluating protective wall systems:

Polycarbonate Panels: Offering superior impact resistance and slightly better light transmission, polycarbonate costs 30-50% more than Acrovyn. It provides better visibility in certain applications but degrades faster under UV exposure.

Fiberglass-Reinforced Panels: These provide excellent durability and chemical resistance, with costs comparable to premium Acrovyn installations. Performance characteristics are similar, with advantages primarily in specific environmental conditions.

Metal Reinforcement Systems: Steel or aluminum cladding offers maximum impact protection but significantly increases costs and aesthetic concerns. These systems are typically reserved for extreme-threat environments.

Architectural Hardening: Rather than adding protective coverings, some facilities redesign environments to eliminate high-risk areas entirely. This approach requires major capital investment but can be more effective long-term.

Most security consultants recommend Acrovyn as a cost-effective middle-ground solution for standard applications, with alternatives reserved for specialized threat profiles.

Implementation Best Practices

To maximize security effectiveness of Acrovyn protection, facilities should:

• Conduct Threat Assessment: Evaluate specific threats your facility faces. Psychiatric hospitals, correctional facilities, and schools have different risk profiles requiring different coverage strategies.
• Professional Installation: Hire certified installers experienced with security applications. Installation quality directly impacts security effectiveness.
• Comprehensive Coverage: Don’t limit protection to walls alone. Extend coverage to vulnerable fixtures, door frames, and areas where impacts are likely.

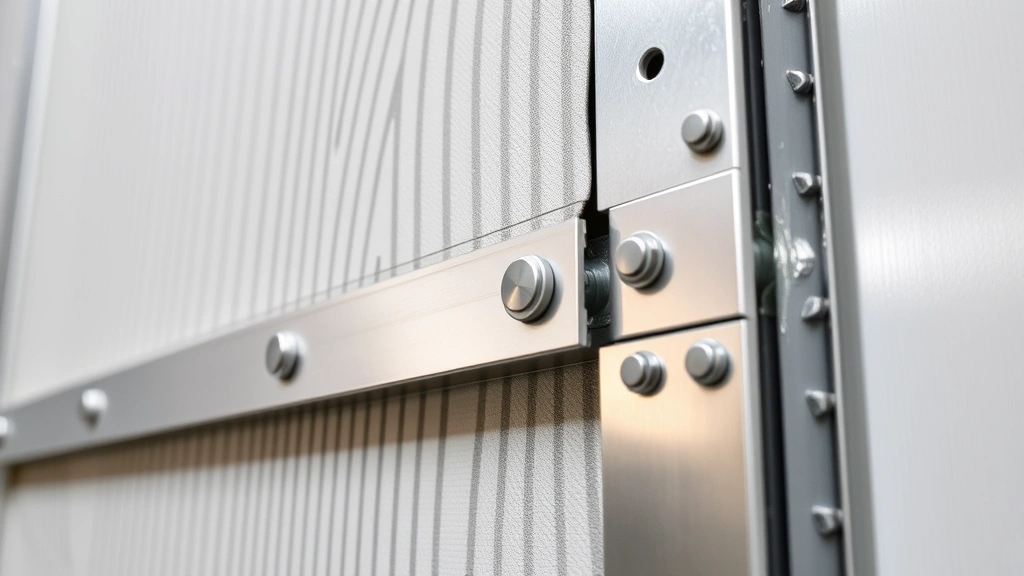

• Edge Reinforcement: Specify metal reinforcement at panel edges, seams, and termination points to prevent exploitation of weak points.
• Regular Inspection: Establish quarterly inspection schedules to identify damage, adhesion failures, or degradation requiring replacement.
• Integration with Other Systems: Combine wall protection with surveillance, access control, and staff training. Wall protection should be one element of comprehensive documented security planning.
• Maintenance Protocol: Use only approved cleaning agents to prevent material degradation. Establish clear maintenance schedules.
• Staff Training: Ensure staff understands that wall protection is not a substitute for behavioral management, de-escalation, or proper security protocols.

Cost-Benefit Analysis for Security

Acrovyn wall protection typically costs $25-50 per square foot installed, depending on thickness, coverage area, and installation complexity. A 1,000-square-foot installation in a healthcare facility might cost $25,000-50,000 including materials and labor.

Benefits include:

• Reduced facility damage costs (studies show 40-60% reduction in wall damage incidents)
• Decreased staff injuries from environmental hazards
• Lower replacement and repair costs over facility lifespan
• Potential insurance premium reductions
• Improved staff and patient confidence in security measures

However, organizations should recognize that Acrovyn alone doesn’t eliminate security threats. Comprehensive facility security requires:

• Trained security personnel
• Surveillance systems and monitoring
• Access control and entry management
• De-escalation and behavioral management protocols
• Emergency response procedures
• Regular security assessments and updates

Acrovyn represents approximately 10-20% of a comprehensive facility security budget in most implementations. Organizations investing heavily in wall protection while neglecting other security elements are not optimizing their security posture.

External resources like FBI cybersecurity guidance and DHS CISA recommendations emphasize that physical security must integrate with broader organizational security strategies. Wall protection is a tactical element, not a strategic solution.

FAQ

Is Acrovyn wall protection bulletproof?

No. Standard Acrovyn panels provide no ballistic protection. They resist blunt force trauma but will not stop bullets or high-velocity projectiles. Organizations requiring ballistic protection need specialized materials and architectural modifications.

How long does Acrovyn wall protection last?

Properly installed and maintained Acrovyn typically lasts 10-15 years. Environmental factors, cleaning methods, and maintenance quality significantly affect lifespan. Harsh environments or aggressive use may require replacement every 8-10 years.

Can Acrovyn be breached with tools?

Yes. While resistant to blunt force, Acrovyn can be cut, drilled, or breached with appropriate tools. The material delays penetration but doesn’t prevent it indefinitely. This reinforces that wall protection must be part of layered security.

Is Acrovyn installation reversible?

Acrovyn is permanently adhered to walls using industrial-strength adhesives. Removal is possible but difficult and typically damages underlying wall surfaces. Plan for permanent installation when specifying Acrovyn systems.

Do insurance companies provide discounts for Acrovyn installation?

Many insurance providers offer modest premium reductions (typically 5-10%) for facilities with documented protective wall systems. Consult your insurance provider about specific requirements and discount availability.

Can Acrovyn be cleaned with standard disinfectants?

Only approved cleaning agents should be used. Standard hospital disinfectants are generally acceptable, but bleach-based products and harsh chemicals can degrade the material. Always consult manufacturer guidance before using new cleaning products.

What’s the difference between security wall protection and impact resistance?

Impact resistance focuses on preventing accidental damage. Security applications require additional considerations: preventing penetration, eliminating weapon creation, and integrating with broader security systems. True security applications need more comprehensive hardening.
